The Matera Products
Showing 1 to 6 of 6 products
Frequently Asked Questions
How does the chrome finish of the Reina Matera affect the BTU output compared to the anthracite model?
The Reina Matera is available in both Chrome and Anthracite finishes and there is a significant technical difference in heat output. Chrome plating has a lower thermal emissivity than powder coated anthracite meaning it radiates less heat into the room. For example the 1412mm high model outputs 1509 BTUs in Chrome but the same size outputs 2157 BTUs in Anthracite. If your bathroom requires a primary heat source the Anthracite version is technically superior offering roughly 40 percent more heat output.
What are the specific pipe center measurements for installing the Reina Matera?
The Reina Matera has a fixed width of 500mm across all models. For installation the pipe centers are calculated based on the connection type. Since the valves connect to the bottom uprights the pipe centers are typically the width of the radiator (500mm) minus approximately 50mm for internal valve connections making them roughly 450mm apart. However it is always technically advisable to have the physical radiator on site before drilling any tiles to ensure 100 percent accuracy as manufacturing tolerances can vary slightly.
Can the Reina Matera be converted to a dual fuel system for summer use?
Yes the Reina Matera is fully compatible with dual fuel conversion. To achieve this you must install a T-piece adapter along with a compatible electric heating element and your standard central heating valves. This setup allows the rail to be heated by the central boiler in winter and by the electric element in summer when the main heating is off. You must ensure the element wattage matches the liquid capacity of the specific rail size to prevent overheating or pressure buildup.
What is the depth projection of the Reina Matera and why is it important?
The Reina Matera has a wall projection of approximately 113mm from the wall to the front face of the rail. This dimension includes the mounting brackets and the rail itself. You must measure this clearance carefully particularly if installing behind a door or in a narrow en suite to ensure the rail does not obstruct the door swing or encroach on standing space. This depth is necessary to allow sufficient air circulation behind the rail which is critical for effective convection heating.
Does the Reina Matera require specific valves for installation?
The Reina Matera features standard 1/2 inch BSP connections located at the bottom of the vertical collector bars. The type of valve you need depends on your pipework. You will require Angled Valves if your pipes emerge from the wall or Straight Valves if your pipes rise up from the floor. For the Chrome model it is recommended to use Chrome Thermostatic Radiator Valves (TRVs) to match the finish while Anthracite valves are best for the Anthracite model to maintain a seamless aesthetic.
Is the Reina Matera suitable for low temperature heating systems like heat pumps?
The Reina Matera is compatible with low temperature systems such as air source heat pumps but you must adjust your output expectations. The advertised BTU ratings (e.g. 1509 BTUs for the 1412mm Chrome model) are based on a Delta T of 50C standard for gas boilers. If used with a heat pump operating at Delta T 30C the actual heat output will be significantly lower. You may need to select a larger model or the Anthracite finish to compensate for the lower water temperature.
What maintenance is required to keep the chrome finish in pristine condition?
To maintain the 10 Year Guarantee and the appearance of the chrome finish you should clean the rail regularly using only a soft damp cloth and warm soapy water. You must strictly avoid using abrasive scouring pads wire wool or acidic chemical cleaners as these can microscopically scratch the chrome plating or strip the protective layer leading to corrosion. Regular cleaning prevents the buildup of condensation and limescale which are common in humid bathroom environments.
How does the mild steel construction impact the durability of the Reina Matera?
The Reina Matera is manufactured from high quality mild steel which is chosen for its structural strength and pressure resistance. To protect the steel from the damp bathroom environment the rail undergoes a rigorous plating or powder coating process. This ensures a robust seal against moisture preventing external rust. The product is pressure tested to withstand up to 10 bar although standard domestic systems operate at much lower pressures ensuring a high safety margin.

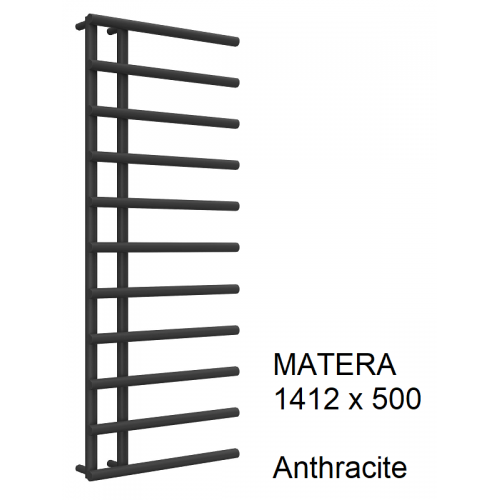

Why is the 1412mm height model recommended for family bathrooms?
The 1412mm high model features 11 horizontal bar sections compared to only 6 on the smaller 772mm model. This additional height provides significantly more hanging space which is technically essential for family bathrooms where multiple towels need to be dried simultaneously. Furthermore the increased surface area generates higher heat output helping to keep the larger volume of air in a family bathroom warm and reducing condensation on mirrors and walls.
What happens if I install an electric element that is too powerful for the rail?
Installing an electric heating element with a wattage that exceeds the capacity of the Reina Matera can cause the liquid inside to boil leading to excessive internal pressure. This can trigger the pressure relief valve or potentially rupture the seals. You must always consult the manufacturer specifications to select the correct element wattage (e.g. 150W 300W or 600W) that matches the specific volume of the chosen rail size to ensure safe and efficient operation.
