The Victoria Range Products
Showing 1 to 3 of 3 products
Frequently Asked Questions
How does the column insert design of the Reina Victoria specifically enhance thermal output compared to standard ladder rails?

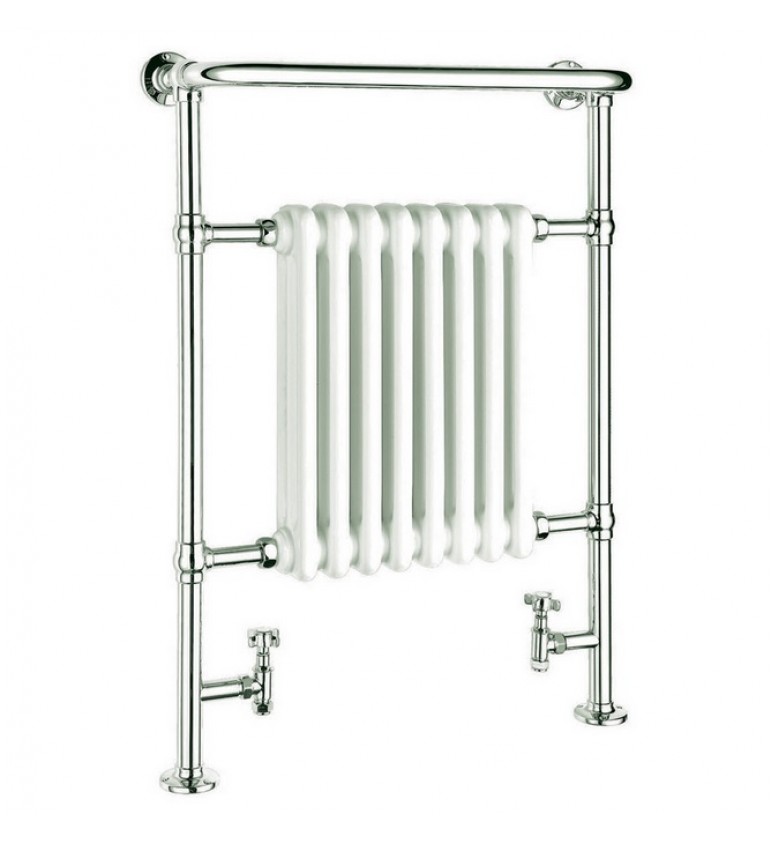

The Reina Victoria utilizes a central column radiator insert surrounded by a chrome tube frame. This technical configuration significantly increases the surface area available for heat transfer compared to hollow ladder rails. The multi section column design allows for a greater volume of hot water to circulate and generates substantial convection currents. This means the radiator can heat the entire bathroom air volume effectively while simultaneously drying towels on the outer heated rails.
What are the technical installation requirements regarding the floor mounting of this radiator?
The Reina Victoria is a floor mounted unit which requires a solid subfloor for secure installation. The radiator is supported by legs that must be screwed directly into the floor. You must technically ensure that your floorboards or tiled surface can support the weight of the steel radiator when it is fully filled with water. Additionally the pipework must be roughed in to emerge from the floor at the correct width to match the valve inlets which are located on the sides of the unit.
What does the Delta T 50C rating of 3520 BTUs indicate for the 8 section Victoria model?
The Delta T 50C rating serves as a technical benchmark for measuring heat output. It indicates that the 8 section Victoria model generates 3520 BTUs when there is a temperature difference of 50 degrees Celsius between the mean water temperature inside the radiator and the ambient room temperature. This high output figure confirms that this unit is capable of acting as a primary heat source for medium to large bathrooms eliminating the need for a separate panel radiator.
Why is the Reina Victoria manufactured from steel and how does this affect its durability?
The Reina Victoria is constructed from high quality steel because of its superior tensile strength and thermal properties. Steel allows for the manufacturing of the intricate column sections without compromising structural integrity under pressure. Technically steel heats up rapidly and retains heat well ensuring the radiator responds quickly to your central heating system controls. The outer chrome plating protects the steel from oxidation and provides a durable hygienic finish for bathroom use.
What type of radiator valves are technically required to connect the Reina Victoria to my pipework?
Since the Reina Victoria is a floor mounted radiator with side entry connections you will typically require angled radiator valves if your central heating pipes emerge from the floor. The valves connect the vertical pipe tail to the horizontal bush of the radiator. You must ensure the valves are compatible with your 15mm copper or plastic pipework. Traditional style crosshead valves are often recommended to complement the Victorian aesthetic while providing standard thermostatic or manual control.
Can the Reina Victoria range be converted for dual fuel usage to provide heat in summer?
While the Reina Victoria is primarily designed for central heating systems dual fuel conversion is technically possible if a compatible electric element and T piece are installed. The electric element would be inserted into the manifold allowing you to heat the water within the rail using electricity when the central boiler is off. However due to the high water volume and heat output requirements of the column sections you must ensure the element wattage is sufficiently rated to heat the volume effectively.
How do I maintain the chrome finish and the column sections to prevent corrosion?
Technical maintenance involves regular cleaning with a soft cloth and warm water to remove dust and condensation residues that can dull the chrome finish. You must avoid abrasive cleaners that can micro scratch the plating. Internally it is critical to ensure your central heating system is treated with a corrosion inhibitor. This chemical additive prevents the steel internals from rusting and prevents the formation of magnetite sludge which can block the narrow column waterways and reduce heat output.
What specific depth clearance is required for the installation of the Victoria model?
The Reina Victoria has a substantial depth of approximately 230mm depending on the specific model. This depth dimension refers to the distance from the wall to the front of the unit or the footprint on the floor. When planning installation in a cloakroom or narrow bathroom you must technically account for this projection to ensure it does not encroach on the walkway or interfere with the opening swing of shower doors or vanity unit drawers.
How does the number of sections in the Alicia versus the Victoria model impact heating performance?
The number of sections directly determines the total surface area and water volume of the radiator. The Alicia model with 4 sections offers 2215 BTUs while the Victoria model with 8 sections offers 3520 BTUs. Technically doubling the sections increases the radiant and convective heat output proportionally. You should select the model based on a heat loss calculation for your room volume rather than just wall space ensuring the output meets the thermal requirement of the space.
What does the 10 Year Guarantee cover in terms of technical product failure?
The 10 Year Guarantee provides coverage against technical manufacturing defects such as leaks at the weld joints material failure or defects in the chrome plating process. It assures that the radiator is built to withstand standard operating pressures and thermal cycles. It generally does not cover issues resulting from improper installation damage caused by aggressive water chemistry due to lack of inhibitor or physical damage sustained after delivery.
